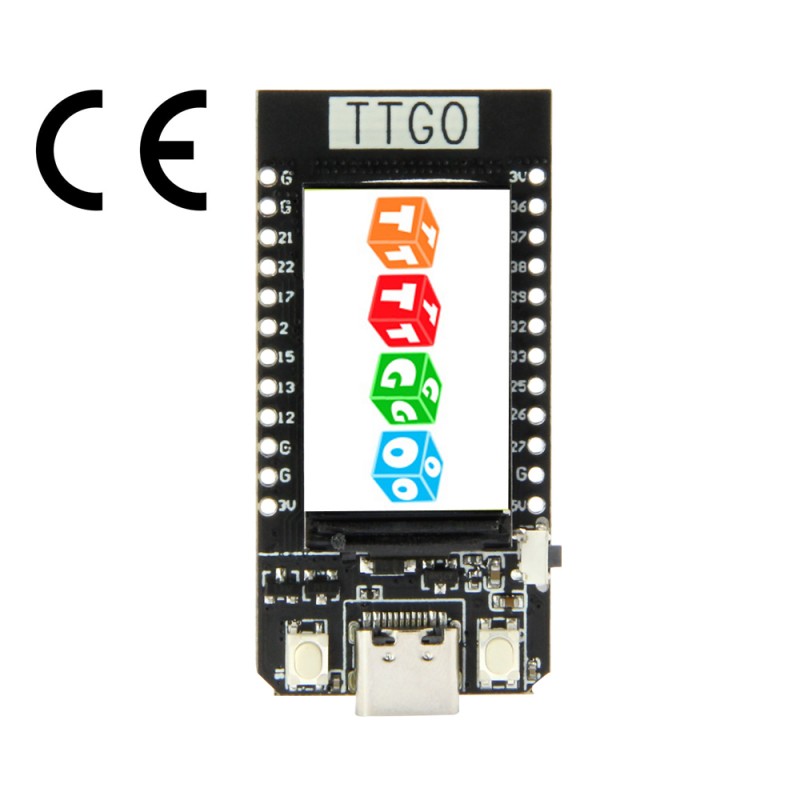

LILYGO TTGO T-Display LCD 1.14 Inch

18,00 €
Aucune taxe livraison sous 3-4 jours

Version 1.1 (CH9102F) 16 MB

Carte de développement TTGO t-display ESP32, Module Compatible WiFi et Bluetooth, 1.14 pouces, panneau de commande LCD.

Quantité
Derniers articles en stock

help_outlineDemande de renseignements sur le produit
LILYGO TTGO T-Display LCD 1.14 Inch

LILYGO TTGO T-Display LCD 1.14 Inch

Version 1.1 (CH9102F) 16 MB

Carte de développement TTGO t-display ESP32, Module Compatible WiFi et Bluetooth, 1.14 pouces, panneau de commande LCD.





Port offert en France dès 40 € d'achat

  Politique de livraison

Expédier sous 1 à 2 jours

  Politique de retours.

Si vous n'êtes pas satisfait, les produits sont remboursable dans les 60 jours.

Lien GITHUB TTGO : https://github.com/Xinyuan-LilyGO/TTGO-T-Display

Specifications Matériels
Chipset ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH QSPI flash 16MB
SRAM 520 kB SRAM
Button Reset
Modular interface UART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、ADC、capacitor touch sensor、DACLNA pre-amplifier
Display IPS ST7789V 1.14 Inch
Working voltage 2.7V-4.2V
Working current About 67MA
Sleep current About 350uA
Working temperature range -40℃ ~ +85℃
Size&Weight 51.52*25.04*8.54mm(7.81g)

Alimentation

Power Supply USB 5V/1A
Charging current 500mA
Battery 3.7V lithium battery
JST Connector 2Pin 1.25mm
USB Type-C

Wi-Fi

Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 20dBm
Communication distance 300m

Bluetooth

Protocol Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency

Specifications logicielles

Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA(Through network/host to download and write firmware)
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction set, cloud server, android/iOSapp
OS FreeRTOS
TTGO-TDISPLAY-16
